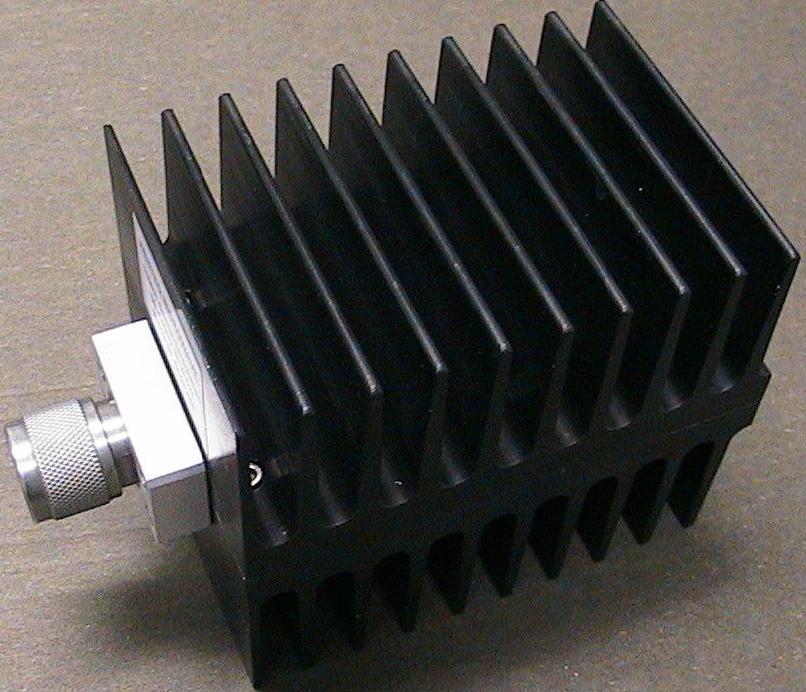

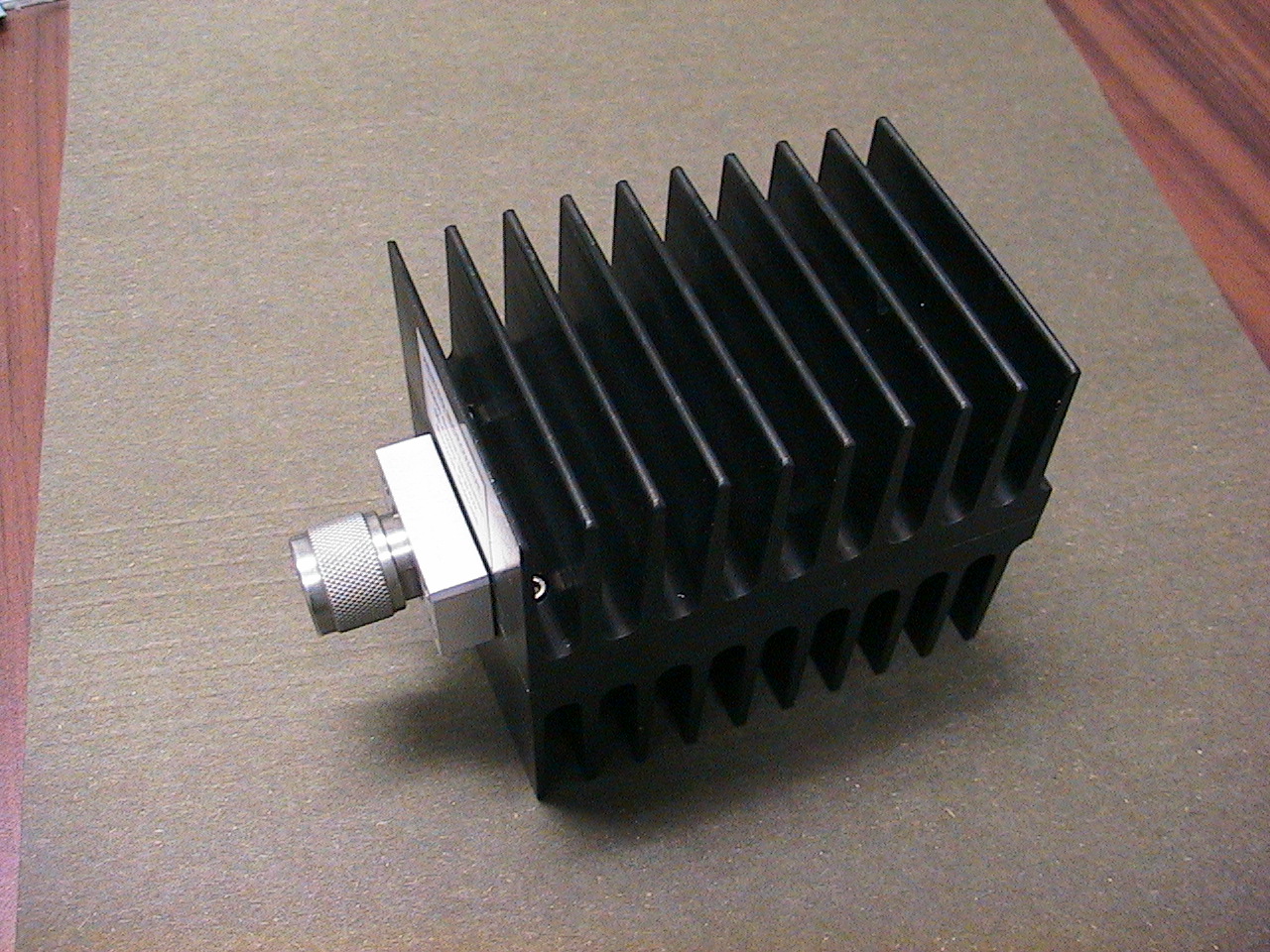

High Power Coaxial Terminations
Wenteq Microwave Corporation offers a wide range of narrow and wide bandwidth RF and microwave isolator and circulator products in coaxial, drop-in and waveguide configurations. These products cover the frequency range from 40MHz to 100GHz. Customers can select from the products listed below or simply send us your application requirements and we will pick the best match from our product list or specifically design it to meet customer requirements.








Part Number Frequency
(GHz)
CW Power
(W)
Pulse Power
(kW)
VSWR Connector Type Size LxWxH mm Cooling
Method
TC0120 DC-0.5GHz 1000 30 1.20 DIN 7/16-Female 150x160x400 air
TC0150 DC-0.5GHz 500 3 1.20 DIN 7/16 or N type F 8.46X5.90X5.90inch air
TC0220 0.2-1.0GHz 500 100 1.20 DIN 7/16-female 150x160x400 air
TC0300 DC-2.0GHz 200 5 1.20 N-female 4.72x4.72x9.84inch air
TC0380 DC-2.0GHz 100 1 1.20 N-female 4.72x4.72x5.91inch
TC0520 DC-4.0GHz 200 5 1.25 N-male 5.89x4.06x4.33inch
TC0580 DC-4.0GHz 100 5 1.25 N-male 5.89x4.06x4.33inch air
TC0640 DC-4.0GHz 50 5 1.25 N-male 4.21x3.50x2.756inch air
TC0641 DC-4.0GHz 50 5 1.25 DIN 7/16 male 4.21x3.50x2.756inch air
TC0701 DC-4.0GHz 25 4 1.20 DIN 7/16 male Φ1.50x1.830inch air
TC0800 DC-3.0GHz 600 10 1.30 DIN 7/16 male 17.80x5.90x6.30inch air
TC1040 DC-4.0GHz 10 1 1.20 N-male Φ40x40 air
TC1080 DC-4.0GHz 1   1.20 N-male Φ21x30 air
TC1180 DC-8.0GHz 5 0.5 1.20 N-male Φ21x45 air
TC1260 DC-8.0GHz 0.5   1.15 SMA-male Φ8x12 air
TC1380 DC-12.0GHz 0.5   1.20 SMA-male Φ8x12 air
TC1580 DC-18.0GHz 0.5 1 1.25 SMA-male Φ8x12 air
